XGLO-200-48V
DESCRIPTION

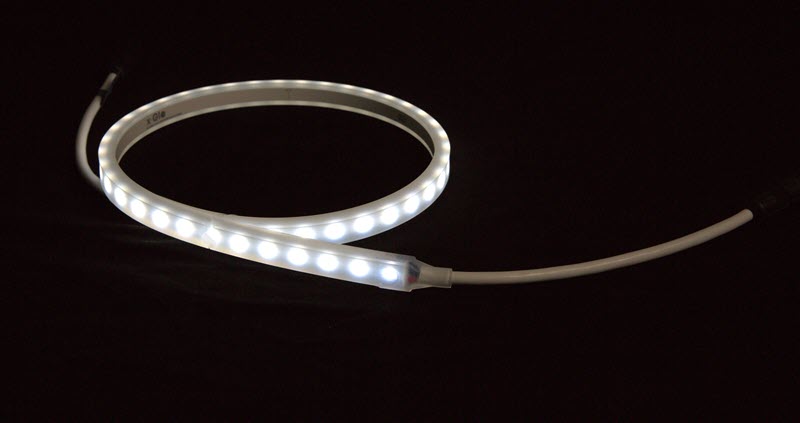

The unique benefits of the x-Glo 200 Lumen 48V LED Strip Tunnel Light Series:
- Extended Coverage: With our Twinflex™ technology, the LED Tunnel strip light can span up to 200 meters when powered from one end and up to 400 meters when powered from both ends, providing extensive lighting coverage.
- Reduced Installation Time: The single span of LED strip lighting reduces installation time by 80% compared to conventional lighting methods, saving you time, labour costs and reduced production downtime.
- Brightness: At 200 lumens and 6,500 kelvin, the LED strip light offers good maintenance and the ability to see hazards underground. Simply add a second or third strip, if more lumens are required without sacrificing distance. A single 48v power supply can be configured to drive all three light spans.
- Dust and Dirt Resistant: Our C-Mask™ technology repels dust and prevents dirt buildup, ensuring long-lasting performance and minimal maintenance.
- Versatile Applications: Ideal for tunnel construction, permanent tunnel lighting in mining, roads, walkways, conveyors, pipelines, large processing plants, or any industrial environment requiring continuous lighting over long distances with fewer power outlets required.
These benefits make the x-Glo LED Strip Tunnel Light Series a reliable and efficient solution for your industrial and tunnel lighting needs.
See below for further specifications:
| Table Header | Table Header |
|---|---|
| PART NUMBER | MG-200-T2-48-48 |
| CASING | Silicone - Moulded |
| LED CHIP TYPE | SMD2835 |
| LED CONFIGURATION | 48 LEDs per meter |
| MAXIMUM RUN LENGTH - SINGLE FEED | 200 metres |
| MAXIMUM RUN LENGTH - DUAL FEED | 400 metres |
| RECOMMENDED FIXING HEIGHT | 2-4 metres |
| IP RATING | 67 |
| POWER CONSUMPTION PER LED | 0.04 Watts/LED |
| POWER CONSUMPTION PER METRE | 2 Watts/m |
| COLOUR RENDERING INDEX (CRI) | >80 |
| COLOUR TEMPERATURE | 6,500 Kelvin |
| LUMINOUS EFFICACY | 100 Lumens / Watt |
| LUMENS PER METRE | 200 Lumens |
| VOLTAGE ON LIGHTING VDC | 48 VDC |
| SUPPLY VOLTAGE FOR POWER CONTROLLERS VAC | 85-265 VAC |
| LIGHT MAINTENANCE | 20% reduction over 4 years |
| LIFESPAN | 50,000 hours |
| WARRANTY LIGHTING | 5 years |
| PROTECTION | Short circuit, over voltage, over temperature, over current |
| AMBIENT WORKING TEMPERATURE | -40°C to +65°C |
| LUX - BSED ON A 3M X 3M TUNNEL | Lux @ 2m average: 15,7 |
| MG-200-T2-48-48VDC | |
|---|---|
| Part Number | MG-200-T2-48-48VDC |
| Lumens | 200 Lumens |
| Luminous Efficacy | 100 Lumens / Watt |
| Casing | PVC - Moulded |
| LED Chip type | SMD2835 |
| LED configuration | 48 LEDs per meter |
| Maximum running length – 48v | 400 meters – Dual Feed, 200 meters – Single Feed |
| Recommended fixing height | 2-4 Meters |
| IP Rating | 67 |
| Power Consumption per LED | 0.04 Watts/LED |
| Power Consumption per Metre | 2 Watts/m |
| Colour Rendering Index CRI | > 80 |
| Colour temperature | 6500 Kelvin |
| Voltage on lighting VDC | 48 VDC |
| Supply voltage for power controllers VAC | 85 - 265 VAC |
| Light maintenance | 20% reduction over 4 years |
| Lifespan | 50,000 Hours |
| Warranty Lighting | 5 Years |
| Protection | Short Circuit Over Voltage Over temperature Over Current |
| Operating Temperature | -20° to +55° Celsius |
| Lux - Based on a Tunnel 3m x 3m | 153 @ 2m average |
