X-GLO 24 STD
DESCRIPTION
Providing a consistent 350 lumens per meter with a running length of up to 74m when powered from both ends or can be cut to the exact length, as required, pre or post installation. (Ask us about our various connector options.)
Ideal for underground mining, tunnels, conveyor areas and crib rooms measuring around 3 x 3 meters requiring maintenance lighting.
The x-Glo 24 LEDs per metre strip lighting is available in 24 or 36v AC or DC.
See below for more detailed information:
All of our 24 LEDs per metre strip lights are available in either PVC or silicon with our patented C-Mask dust and dirt retardant technology built in, ensuring minimum light degradation over time.
| x-Glo-24-24vDC | x-Glo-24-36vDC | |
|---|---|---|
| Part Number | XGLO 24-24v-DC | XGLO 24-36v-DC |
| Lumens | 500 | 350 |
| Luminous Efficacy | 104.46 Lumens / Watt | 101.90 Lumens / Watt |
| LED Chip | Epistar | Epistar |
| LED configuration | 24 LED's per meter | 24 LED's per meter |
| Maximum running length | 40 Metres – Dual Feed 20 Meters – Single Feed | 74 Metres – Dual Feed 37 Meters – Single Feed |
| Recommended fixing height | 3 – 4 Metres | 3 – 4 Metres |
| IP Rating | 67 | 67 |
| Maximum Watts per Metre | 4.80 Watts | 3.60 Watts |
| Colour Rendering Index CRI | > 80 | > 80 |
| Colour temperature | 6500 Kelvin | 6500 Kelvin |
| Ambient operating temperature | PVC: -20° to 45°𝐶 Silicone: -40° to 55°𝐶 | PVC: -20° to 45°𝐶 Silicone: -40° to 55°𝐶 |
| Voltage | 24V DC Only | 36V DC Only |
| Light maintenance | 20% reduction over 4 years | 20% reduction over 4 years |
| Lifespan | 50,000 Hours | 50,000 Hours |
| Warranty | 5 Years | 5 Years |
| Protection | Short Circuit Over Voltage Over temperature Over Current | Short Circuit Over Voltage Over temperature Over Current |

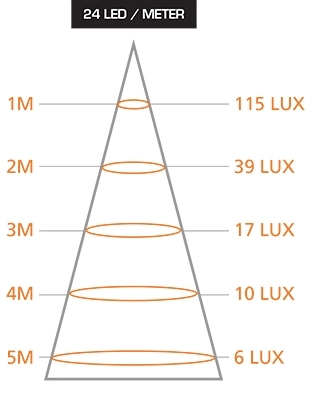

GRAPH
Readings displayed are from a 1 meter piece only, as the length extends the luminescence increases substantially due to overlapping light
