1200W 48vDC Power Supply

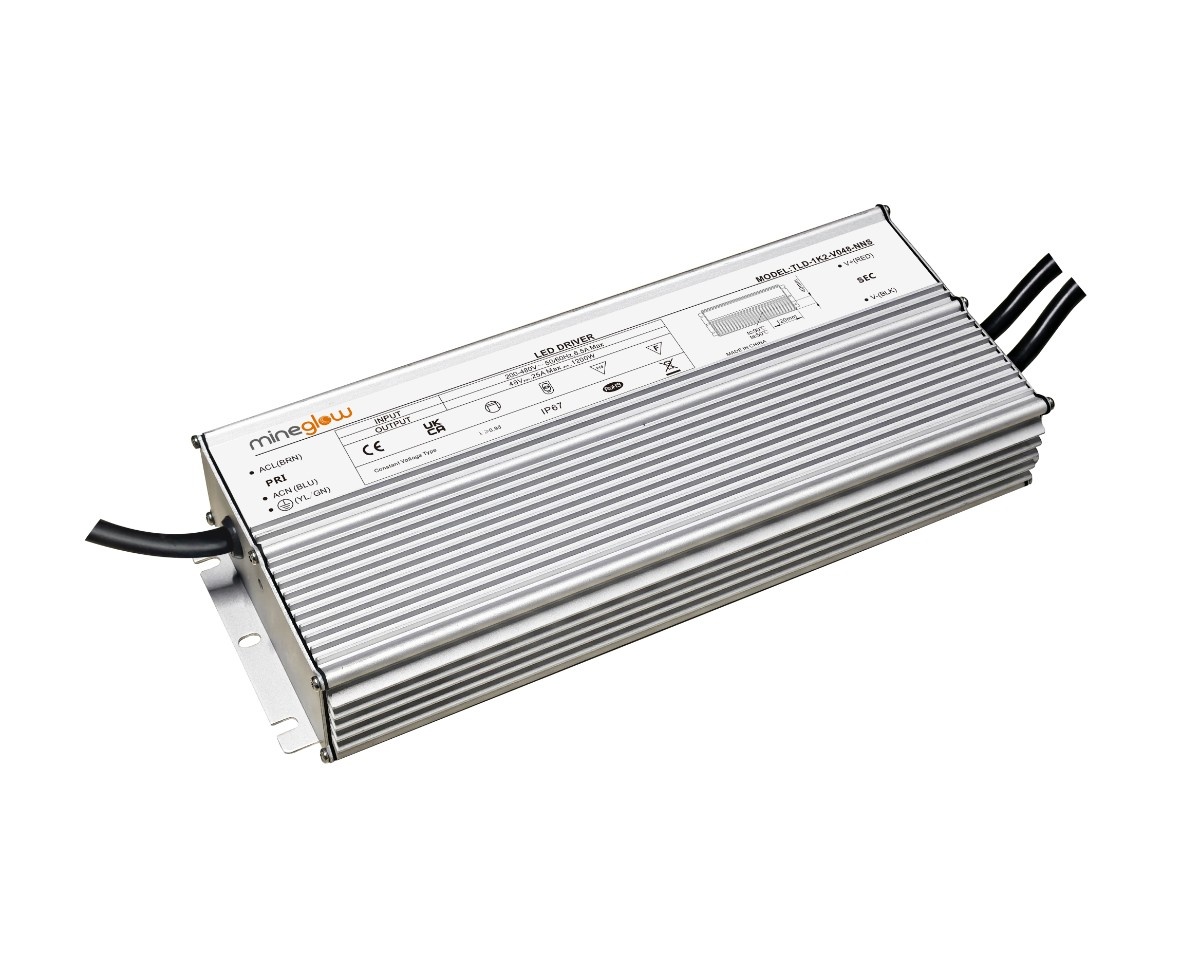

HX-1200W Power Supply 48VDC
The TLD-1K2 series power supply is a dual stage high efficiency power supply designed
specifically for LED Rope Lighting. Highest Wattage in class (1200Watt for an IP67 Industrial rated power supply), 100k hour long life and 5-year warranty provide high confidence to luminaire users. All around protections including digital OTP, SCP and OCP with auto-recovery. Designed for 24hour non-stop operation for LED Rope Lights.
See Technical Specifications below or contact us for further details.
SPECIFICATIONS | SUMMARY
| Table Header | Table Header |
|---|---|
| Part Number | HX-TLD-1K2-V048-NNZ |
| Power | 1200W |
| Power Supply | Constant Voltage LED Power Supply |
| Voltage INPUT | 180–528 VAC (380VAC for 2 hours) |
| Voltage OUTPUT | 48VDC |
| Current – INPUT | 6.5A max @208VAC Full Load 6.0A max @220VAC Full Load 4.5A max @277VAC Full Load 2.7A max @480VAC Full Load |
| Current – OUTPUT | 25A |
| Warranty | 5 Years (@ Tc ≤75°C) |
