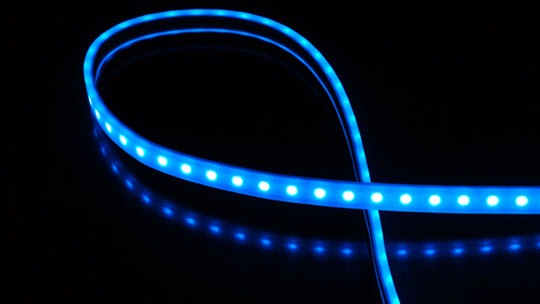

em-Lighting – RGB
DESCRIPTION
Our RGB range of lighting can be used as a static or pulsing light that can be programmed to provide any type of single or multi colour lighting as required per the specifications below.
| Table Header | Table Header | Table header |
|---|---|---|
| CHIP | EPISTAR | |
| IP RATING | 67 | |
| COLOUR RENDERING INDEX CRI | >70 - WHITE ONLY | |
| COLOUR/CCT | RED 618-324nm, GREEN 522-530nm, BLUE 468-474nm, WHITE 6500k | |
| BEAM ANGLE | 150º | |
| POWER FACTOR | 0.99 | |
| WARRANTY | 5 YEARS | |
| LIFESPAN | UP TO 10 YEARS | |
| PROTECTION | SHORT CIRCUIT, OVER VOLTAGE, OVER TEMPERATURE, OVER CURRENT | |
| VOLTAGE TYPE | DC | |
| VOLTAGE RANGE (MIN/MAX) | 24V (CONSTANT VOLTAGE) | |
| TEMPERATURE RANGE (PVC) | -20°C TO 45°C | |
| TEMPERATURE RANGE (SILICON) | -20°C TO 55°C |
Our RGB range of lighting will require our em-Controller in order to program the lights as required.
| Table Header | Table Header | |
|---|---|---|
| LED PER METER | 28 LEDS PER METER | 56 LEDS PER METER |
| VOLTAGE | 24V | 24V |
| PRODUCT CODE | x-Glo-L-28-24VDC-RGB-C | x-Glo-56-24VDC-RGB/RGB-C |
| WATTS PER METER | 3 | 12 |
| MAX RANGE FED FROM SINGLE FEED | 50m | 15m |
| MAX RANGE FED FROM BOTH SIDES | 100m | 30m |
| LUMENS PER METER | 178 lm(RGB) | 355 lm(RGB) |
| LUMENS PER METER | 29.67 lm/w | 29.58 lm/w |
