320W 24/36/48v Power Supply

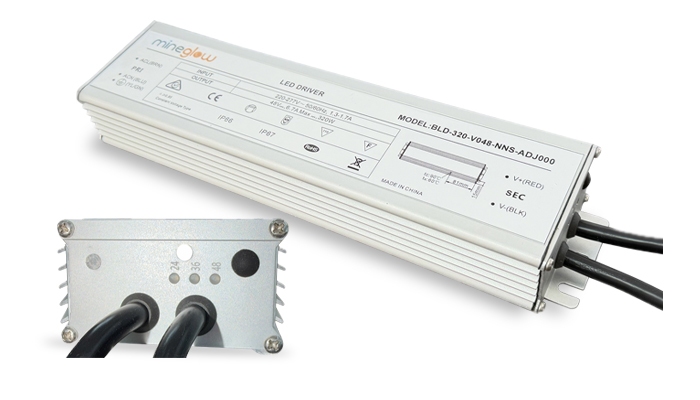

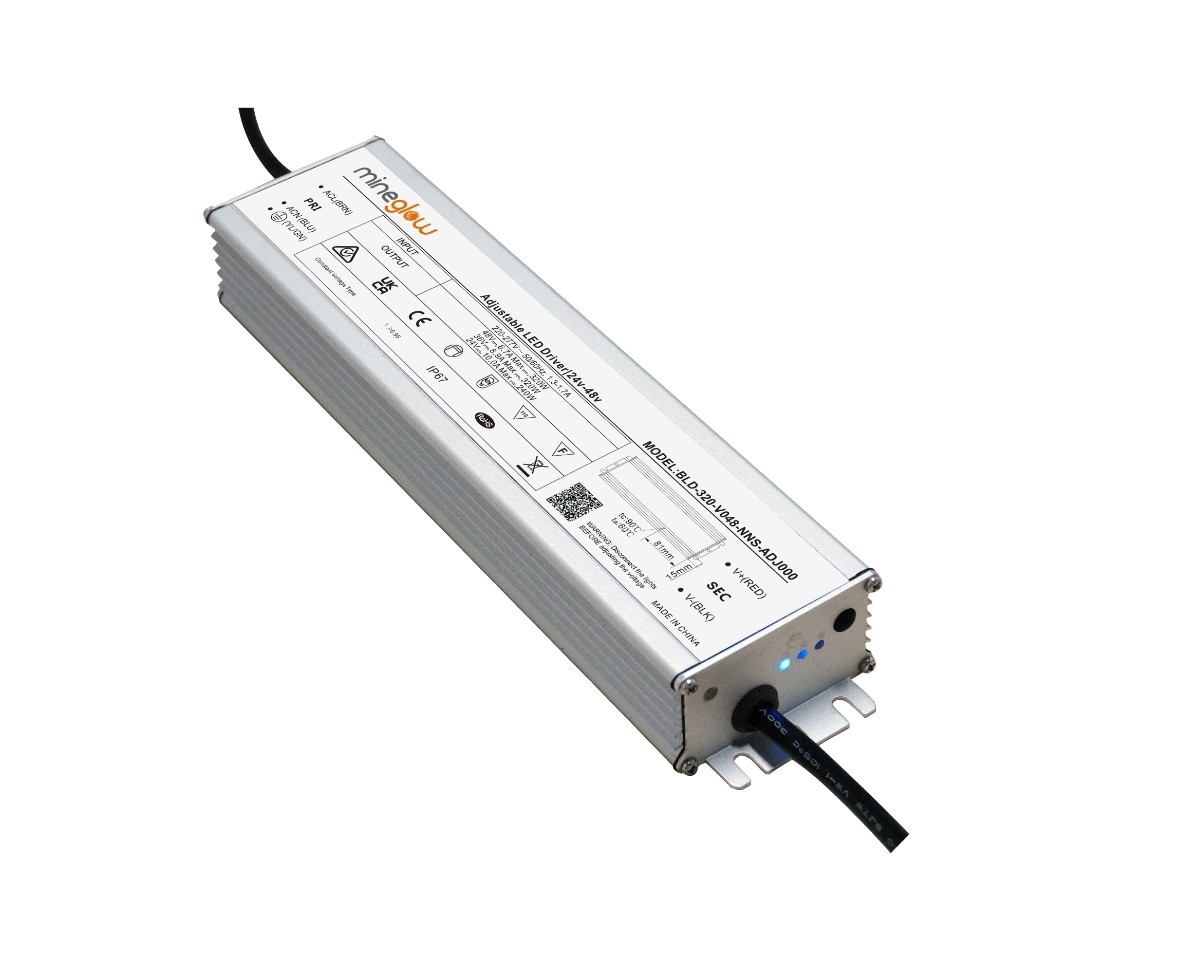

320W DC Power Supply Voltage Adjustable – 24/36/48v – Dual Output
The HX 320W DC Power Supply (DUAL OUTPUT) is a highly efficient, rugged power supply, engineered specifically for energising industrial grade LED Strip Lights in demanding environments with a fully adjustable output voltage ranging from 24v to 50v.
Encased in a water-resistant IP67-rated aluminium enclosure, the HX-BLD-320-ADJ PSU features dual output capability, making it ideal for powering multiple light strips from a single unit to illuminate a mine or construction tunnel, rail corridor, underground workshop, underground stores, conveyors, water utility area etc. With a fully adjustable output voltage (24 to 50vDC), this power supply is highly versatile whilst delivering consistent, efficient power specifically for LED Strip Lighting.
Highly versatile – Each power supply can be set to the exact voltage that the LED strip requires. No longer having to decide on a standard voltage for your site. Rather select the best LED Light strip for the job and easily set the power supply voltage to suit .
Recommended for use with ANY of the MineGlow LED Strip lights for:
- Mining tunnels, conveyor tunnels, drifts, and declines
- Underground stores
Cuddies and crib rooms
Dump points
Train loadout areas
Workshops & maintenance bays
Tunnel Construction
Utility tunnels
Any industrial power application requiring 24, 36 or 48v power output
Fully certified for use in Australia and worldwide. All certifications available on request.
See Technical Specifications below or contact us for further details.
SPECIFICATIONS | SUMMARY
| Table Header | Table Header |
|---|---|
| Part Number | HX-BLD-320-ADJ |
| Power | 320W @ 36 & 48V 240W @ 24V Single or Dual Output |
| Power Supply | Fully Sealed enclosure with a single input cable and dual output cable. Side button to adjust voltage. |
| Voltage INPUT | 90-305 VAC Single Phase |
| Voltage OUTPUT | 24/36/48 VDC Fully Adjustable from 24V to 50V in 0.5V increments |
| Current – INPUT | 2.9A max@120VAC - Full Load 1.5A max@ 220VAC - Full Load |
| Current – OUTPUT | 24V - 10A 36V - 8.9A 48V - 6.7A |
| Enclosure Type | Ruggedised Aluminium casing |
| Enclosure Size | 225L x 68W x 38.5H |
| Operating Temperature | -40° to +90° C |
| IP Rating | IP 66 and IP 67 |
| External Isolator | N/A |
| Circuit Breaker | N/A |
| Warranty | 5 Years |
| Maximum Run Length with 320W Powered from one end.
These lengths double when energising the strip from both ends. | |
| x-Glo Standard Range – 24V 24-24v DC 36-24v DC 1000-72-24v DC | 56m 37m 22m |
| x-Glo Standard Range – 36V
24-36v DC 650-44-36v DC 1000-66-36v-DC | 75m 49m 30m |
