em-Backup
DESCRIPTION

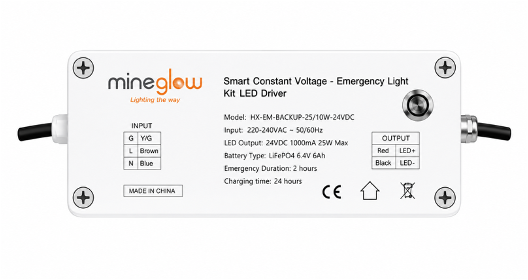

The Mineglow em-Backup-25W-10-24V controller is an emergency LED driver with integrated battery backup suitable for running short lengths of LED strip lights for a minimum of 120 minutes during power failure. The em-Backup controller provides a constant current output, ensuring consistent lighting in the event of power failure, ensuring the lights do not dim below their emergency state, or prematurely drain the battery to provide 120mins of light. Lithium battery technology ensures long battery life, with a small footprint and has a IP65-rated sealed enclosure (a limitation of Lead Acid technologies). It also has self-test function to ensure the controller is operating, as required, under relevant safety standards.
DESCRIPTION
| Part Number | Em-Backup-24Vdc-25W/10W |
| Power | 25W when on mains 10W when on battery power |
| Power Supply | Constant Voltage - Constant Current LED Power Supply |
| Voltage INPUT | 220–240VAC, 47–63Hz (380VAC for 2 hours) |
| Voltage OUTPUT | 24VDC |
| Current – Max INPUT | 0.5A max |
| Current – Max OUTPUT | 1A (Normal Condition); 0.5A (Emergency) |
| Enclosure Type | Industrial strength sealed ABS enclosure |
| Enclosure Size | 250 × 80 × 70 mm (including endcaps) |
| Operating Temperature | -0°C to +55°C |
| IP Rating | IP65 |
| Circuit Breaker | N/A |
| Warranty | 3 Years |
