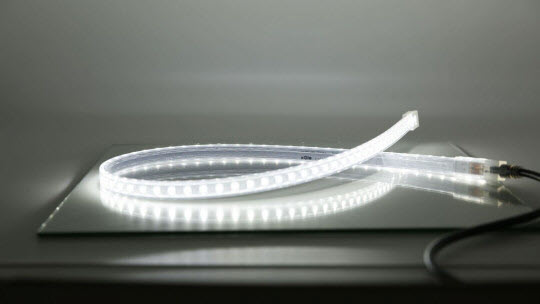

X-GLO 36 STD
DESCRIPTION
This is our 2nd most popular 24 volt LED strip light for 3m x 3m mining tunnels, cuddies, crib rooms, drifts and conveyor or train load out areas.
Alternatively the x-Glo 36-24v LED Strip lights are installed for temporary tunnel construction lighting, underground workshops, long wall staging areas and drilling.
Alternatively it can be used to illuminate stairwells or evacuation escape ways providing good safety lighting.
Providing a consistent 750 lumens per meter with a running length of up to 32m when powered from both ends or can be cut to an exact length, as required, pre or post installation. (Ask us about our various connector options.)
When needing more than 750 lumens, it is easy to install 2 sets of LED strips, using our dual feed power supplies to provide 1,500 lumens into an area, to provide ‘day light’ illumination with no shadowing or dark spots. Very popular in mining, tunnel construction, service bays and water utility areas.
The x-Glo 36 LEDs per metre strip lighting is available in 24 DC only.
For a 36v option please see our x-Glo 650 36v STD series.
Available in a PVC or silicon IP67 extrusion with our patented C-Mask™ dust and dirt retardant technology built in, ensuring minimum light degradation over time.
See below for more detailed information:
| Table Header | Table Header | |
|---|---|---|
| 36 LEDS PER METER | 24V | 36V |
| PRODUCT CODE | X-GLO-36-24V | X-GLO-36-36V |
| WATTS PER METER | 7.2 | 5.5 |
| MAX RANGE FED FROM SINGLE FEED | 16m | 30m |
| MAX RANGE FED FROM BOTH SIDES | 32m | 60m |
| LUMENS PER METER | 600 | 600 |
| LUMINOUS EFFICIENCY | 83.33 LUMENS/WATT | 110 LUMENS/WATT |
| LUX BASED ON 3X3M | 115@2M AVERAGE | 115@2M AVERAGE |
| X-Glo-36-24vDC | |
|---|---|
| Part Number | XGLO 36-24v-DC |
| Lumens | 750 |
| Luminous Efficacy | 105.68 Lumens / Watt |
| LED Chip | Epistar |
| LED configuration | 36 LED's per meter |
| Maximum running length | 32 Metres – Dual Feed 16 Meters – Single Feed |
| Recommended fixing height | 3.5 – 4.5 Metres |
| IP Rating | 67 |
| Maximum Watts per Metre | 7.20 Watts |
| Colour Rendering Index CRI | > 80 |
| Colour temperature | 6500 Kelvin |
| Ambient operating temperature | PVC: -20° to 45° Silicone: -40° to 55° |
| Voltage | 24V DC Only |
| Light maintenance | 20% reduction over 4 years |
| Lifespan | 50,000 Hours |
| Warranty | 5 Years |
| Protection | Short Circuit Over Voltage Over temperature Over Current |

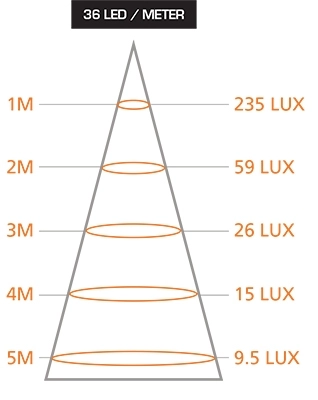

GRAPH
Readings displayed are from a 1 meter piece only, as the length extends the luminescence increases substantially due to overlapping light
