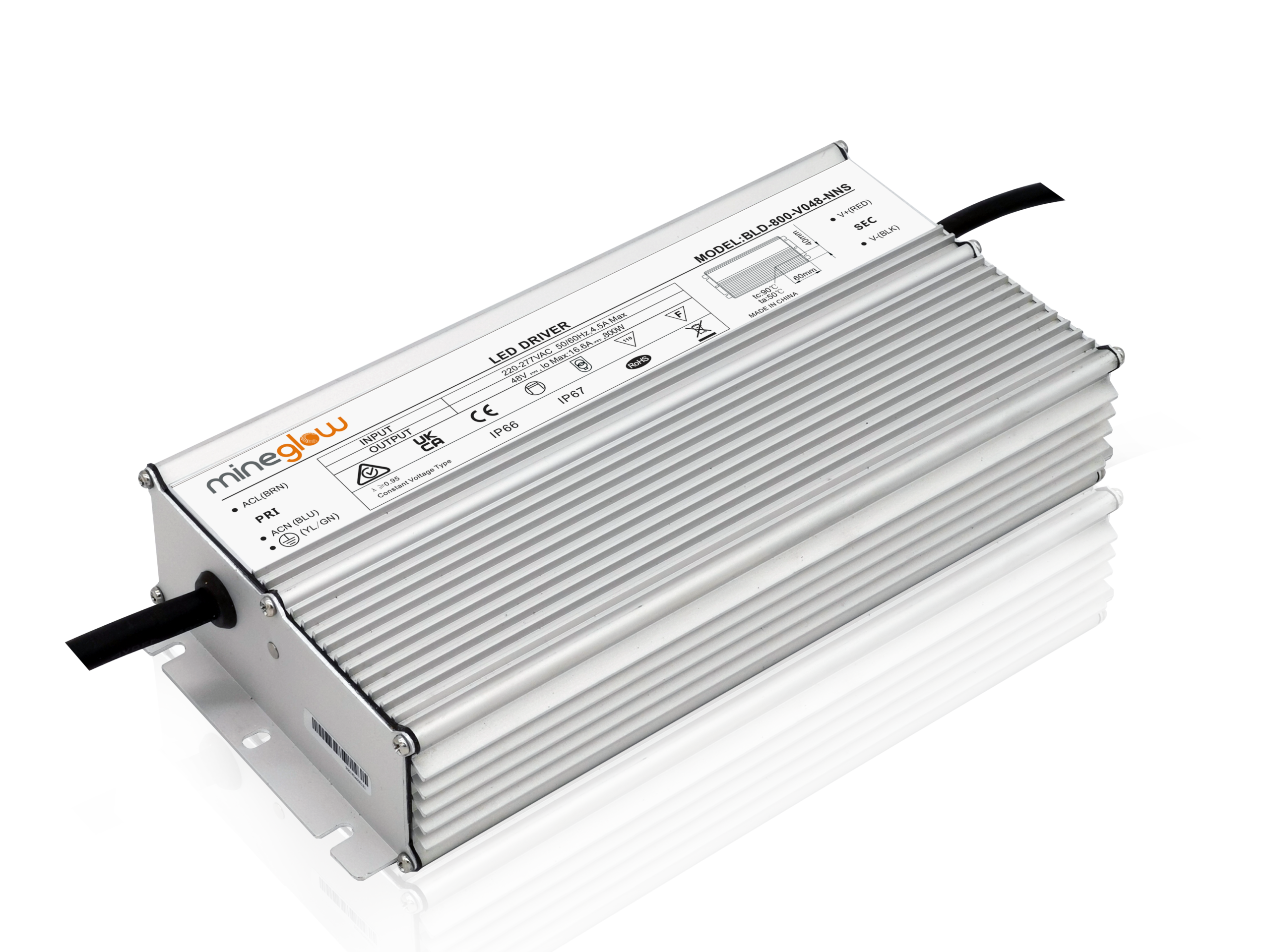

HX 800W 48V Power Supply
HX 800W 48V Power Supply
The BLD-800 series power supply is a dual stage high efficiency power supply designed specifically for LED Rope Lighting. Featuring 800Watt continuous power in an IP67 Industrial rated package with a 100k hour long life and 5-year warranty provide high confidence to luminaire users. All around protections including digital OTP, SCP and OCP with auto-recovery. Designed for 24hour non-stop operation for LED Rope Lights.
See Technical Specifications below or contact us for further details.
SPECIFICATIONS | SUMMARY
| Table Header | Table Header |
|---|---|
| Part Number | HX-BLD-800-V048-NNS |
| Power | 800W (176–305VAC input) / 600W (100–176VAC input) |
| Power Supply | Constant Voltage LED Power Supply |
| Voltage INPUT | 100–305VAC, 47–63Hz (380VAC for 2 hours) |
| Voltage OUTPUT | 48VDC |
| Current – Max INPUT | 4.1A max @ 220VAC Full Load; 3.3A max @ 277VAC Full Load |
| Current – Max OUTPUT | 16.6A (176–305VAC input); 12.5A (100–176VAC input) |
| Enclosure Type | Industrial sealed enclosure |
| Enclosure Size | 262 × 125 × 49 mm (including endcaps) |
| Operating Temperature | -40°C to +90°C |
| IP Rating | IP 66 and IP 67 |
| Circuit Breaker | N/A |
| Warranty | 5 Years (Tc ≤ 75°C) |
