48 V Tunnel Range
Ultra Long-Range LED Strip Lighting System
Longest-reach continuous-run LED strip light available today!
Designed for the most demanding tunnels, underground passages, mining declines, rail / road tunnels, construction and industrial corridors — our x-Glo Ultra Long LED Strip Lighting System delivers industrial-grade, continuous-run LED illumination over extreme distances of up to 400m, between power sources.
Why the x-Glo Ultra Long Tunnel Range Outperforms Standard LED Strip Lights
Standard industrial-grade LED strip lights are optimised for short runs — they suffer voltage drop, uneven brightness, heat issues, and require up to 10 times the amount of power supplies to energise them when stretched beyond tens of metres. Our Ultra Long 48v Tunnel Range was engineered to address those limitations, delivering consistent luminosity, fast heat dissipation, minimal voltage drop and improved safety over hundreds of metres.
Dartbrook CHPP Conveyor Lighting
MineGlow Cross River Rail Long range 12 LEDs per metre 24DC 108m Rolls 3
Key Advantages – What Makes It Ultra-Long-Range and Reliable
- True Ultra Long-Range Performance: Maintains even brightness over up to 400 metres between power feeds — ideal for long tunnels, conveyors, ports, rail, decline drives, industrial shafts, or any large infrastructure.
- Construction Lighting: Being ultra low voltage, highly robust and flexible, makes it an ideal temporary work light for tunnel and general construction sites. Quick to install and provides shadow free “daylight” conditions.
- Continuous-Run Capability: Enables lengthy continuous lighting runs (up to 400m) without having to frequent install power supplies, reducing installation complexity, wiring, and maintenance overhead.
- Industrial-Grade Durability: IP67-rated, water-repellent, UV-resistant, and corrosion-protected — built for harsh tunnel, mining, oil & gas, and construction environments with operating temperatures from –40 °C to +50 °C.
- Thermal Management and Longevity: Rapid heat dissipation and robust mechanical design prevent yellowing, burn-out or brightness degradation — with a lifespan of 5–10 years with continuous 24/7 operation.

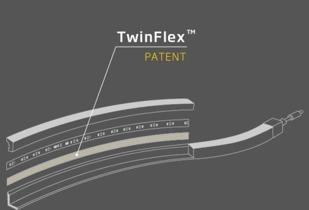

- Redundant and Safe: Dual-conductor (Twinflex™ + backup conductor) provides redundancy and increased reliability — important where lighting failures are not an option.
- Simple Installation and Maintenance: Pre-installed IP68 quick-connectors and modular lengths (5 m, 10 m, 20 m) makes for easy installation and zero maintenance downtime. A section can be replaced in under five minutes.
Applications — When You Need More Than “Just LED Strip Lights”
- Road, rail and pedestrian tunnels
- Mining decline drives, underground shafts and conveyors
- Long industrial walkways, ship-holds, ports or offshore rig corridors
- Utility tunnels or large-scale infrastructure requiring reliable, high-quality lighting over long distances
When to Choose our Tunnel Range Over Standard LED Strip Lights
If your project demands a high-quality, industrial-grade LED strip ligh capable of spanning long distances with power needed only every 400 m, and you want to minimise maintenance, installation complexity, and risk — the Ultra Long Tunnel Range is the only realistic solution available today.
It’s not a generic strip light — it’s engineered as a fully industrial, ultra long-range lighting solution, built to outperform conventional LED strip lights in performance, distance, durability, and safety.
See our Cross River Rail construction case study for more information.
