Exm-48V LED Lights
DESCRIPTION
All our explosion proof LED strip lights have the following as standard:
| Table Header | Table Header | Table header |
|---|---|---|
| CHIP | EPISTAR | |
| IP RATING | 67 | |
| COLOUR RENDERING INDEX CRI | >80 | |
| COLOUR TEMPERATURE | 6500 KELVIN | |
| COLOUR AVAILABLE | COOL WHITE, RED, GREEN, AMBER. (Static Only) | |
| POWER FACTOR | 1 | |
| WARRANTY | 5 YEARS | |
| LIFESPAN | UP TO 10 YEARS | |
| PROTECTION | SHORT CIRCUIT, OVER VOLTAGE, OVER TEMPERATURE, OVER CURRENT | |
| MAINTENANCE | NONE. HAS A 20% REDUCTION OVER 4 YEARS | |
| VOLTAGE | 48V (DC Only) | |
| TEMPERATURE RANGE (PVC) | -30°C TO 80°C |

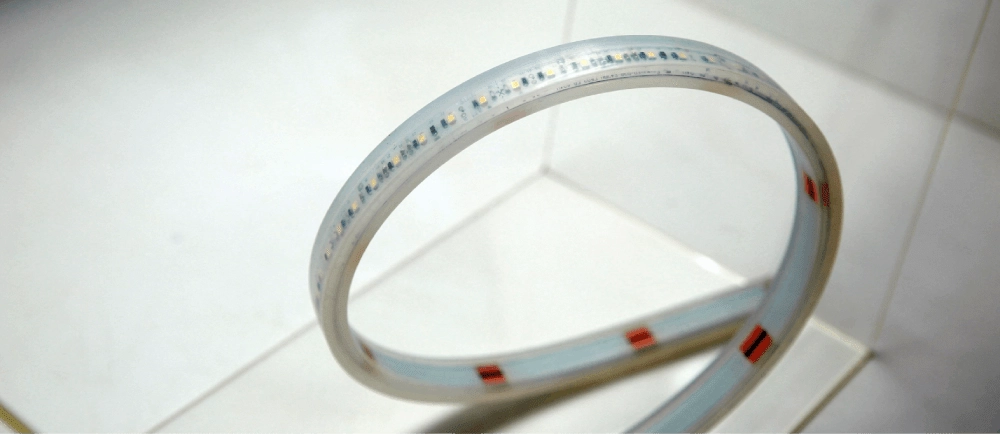

Our explosion proof LED strip lights are available in a fully enclosed IP 67 silicon enclosure with dust and dirt retardant properties built in as standard.
Fully IECEx certified for coal mines, oil & gas use:
IECEx Certification: IECEx TSA 21.0013X
Markings: Ex mb I Mb, Ex mb IIC T6 Gb, Ex mb IIIC T80°C Db
HOW TO INSTALL YOUR EXM LED EXPLOSION PROOF LIGHTING
| Table Header | Table Header | ||
|---|---|---|---|
| PRODUCT CODE | MineGlow-EXM-84-48V | MineGlow-EXM-56-48V | MineGlow-EXM-28-48V |
| WATTS PER METER | 12 | 8 | 4 |
| MAX RANGE SINGLE FEED ONLY IN METERS | 20m | 25m | 30m |
| LUMENS PER METER | 1000 | 660 | 330 |
| LED PER METER | 84 | 56 | 28 |
