XGLO-1080-48V
DESCRIPTION

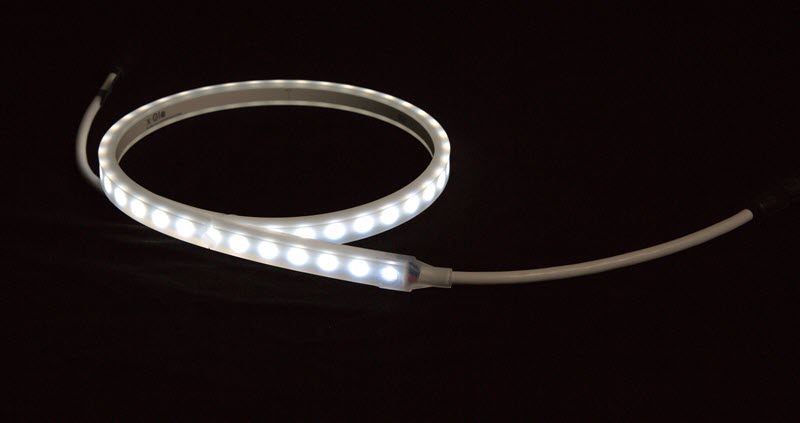

Our 1080 lumen 48V LED strip tunnel lights come standard with our C-Mask™ technology built in to repel dust and retard dirt build up. Our Twinflex™ technology enables the product to run over longer distances between power sources. Available in Silicon only.
| Table Header | Table Header |
|---|---|
| PART NUMBER | MG-1080-T12-48-48 |
| CASING | Silicone - Moulded |
| LED CHIP TYPE | SMD2835 |
| LED CONFIGURATION | 72 LEDs per meter |
| MAXIMUM RUN LENGTH - SINGLE FEED | 100 metres |
| MAXIMUM RUN LENGTH - DUAL FEED | 200 metres |
| RECOMMENDED FIXING HEIGHT | 5-6 metres |
| IP RATING | 67 |
| POWER CONSUMPTION PER LED | 0.166 Watts/LED |
| POWER CONSUMPTION PER METRE | 12 Watts/m |
| COLOUR RENDERING INDEX (CRI) | >80 |
| COLOUR TEMPERATURE | 6,500 Kelvin |
| LUMINOUS EFFICACY | 90 Lumens / Watt |
| LUMENS PER METRE | 1080 Lumens |
| VOLTAGE ON LIGHTING VDC | 48 VDC |
| SUPPLY VOLTAGE FOR POWER CONTROLLERS VAC | 85-265 VAC |
| LIGHT MAINTENANCE | 20% reduction over 4 years |
| LIFESPAN | 50,000 hours |
| WARRANTY LIGHTING | 5 years |
| PROTECTION | Short circuit, over voltage, over temperature, over current |
| AMBIENT WORKING TEMPERATURE | -40°C to +55°C |
| LUX - BSED ON A 3M X 3M TUNNEL | Lux @ 2m average: 79,81 |
| MG-1080-T12-72-48VDC | |
|---|---|
| Part Number | MG-1080-T12-72-48VDC |
| Lumens | 1,080 Lumens |
| Luminous Efficacy | 90 Lumens / Watt |
| LED Chip | PVC - Moulded |
| LED Chip type | SMD2835 |
| LED configuration | 72 LED per meter |
| Maximum running length – 48v | 200 meters – Dual Feed 100 meters – Single Feed |
| Recommended fixing height | 5 - 6 Meters |
| IP Rating | 67 |
| Power Consumption per LED | 0.166 Watts/LED |
| Power Consumption per Metre | 12 Watts/m |
| Colour Rendering Index CRI | > 80 |
| Colour temperature | 6500 Kelvin |
| Voltage on lighting VDC | 48 VDC |
| Supply voltage for power controllers VAC | 85 - 265 VAC |
| Light maintenance | 20% reduction over 4 years |
| Lifespan | 50,000 Hours |
| Warranty Lighting | 5 Years |
| Protection | Short Circuit Over Voltage Over temperature Over Current |
| Roll Size | 20m with IP67 Quick Connects* (5m and 10m roll options available) |
| Operating Temperature | -20° to +55° Celsius |
| Lux - Based on a Tunnel 3m x 3m | 153 @ 2m average |
