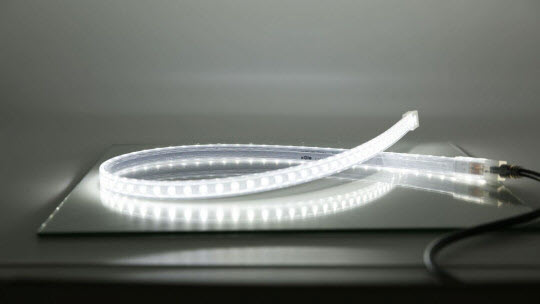

X-GLO 650 STD
DESCRIPTION
This is our 2nd most popular 24v LED strip light for 3m x 3m mining tunnels, cuddies, crib rooms, drifts and conveyor or train load out areas.
Also used for temporary tunnel construction lighting, underground workshops, long wall staging areas and drilling.
Providing a consistent 650 lumens per meter with a running length of up to 48m when powered from both ends or can be cut to an exact length, as required, pre or post installation. (Ask us about our various connector options.)
An ideal lighting solution when you want to provide suitable work light.
When more than 650 lumens are required, it is easy to install 2 sets of these x-Glo 650 LED strips, using our dual feed power supplies with 1,300 lumens into an area, to provide ‘day light’ illumination with no shadowing or dark spots. Very popular in mining and tunnel construction.
Available in either PVC or silicon with our patented C-Mask™ dust and dirt retardant technology built in, ensuring minimum light degradation over time.
The x-Glo 36 LEDs per metre strip lighting is available in 36v DC only.
See below for more detailed information:
| XGLO 650-44-36v-DC | |
|---|---|
| Part Number | XGLO 650-44-36v-DC |
| Lumens | 650 |
| Luminous Efficacy | 124.14 Lumens / Watt |
| LED Chip | Epistar |
| LED configuration | 44 LED's per meter |
| Maximum running length | 48 Metres – Dual Feed 24 Meters – Single Feed |
| Recommended fixing height | 4 – 5 Metres |
| IP Rating | 67 |
| Maximum Watts per Metre | 5.50 Watts |
| Colour Rendering Index CRI | > 80 |
| Colour temperature | 6500 Kelvin |
| Ambient operating temperature | PVC: -20° to 45° Silicone: -40° to 55° |
| Voltage | 36V DC Only |
| Light maintenance | 20% reduction over 4 years |
| Lifespan | 50,000 Hours |
| Warranty | 5 Years |
| Protection | Short Circuit Over Voltage Over temperature Over Current |

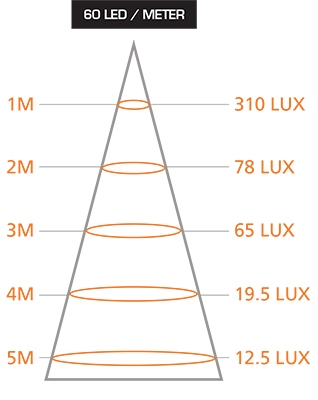

GRAPH
Readings displayed are from a 1 meter piece only, as the length extends the luminescence increases substantially due to overlapping light
