2400w – 48v PSU -Power Supply Unit
2400W 48V DC Power Supply Unit with Dual Output | Engineered for Long-Range Tunnel Lighting

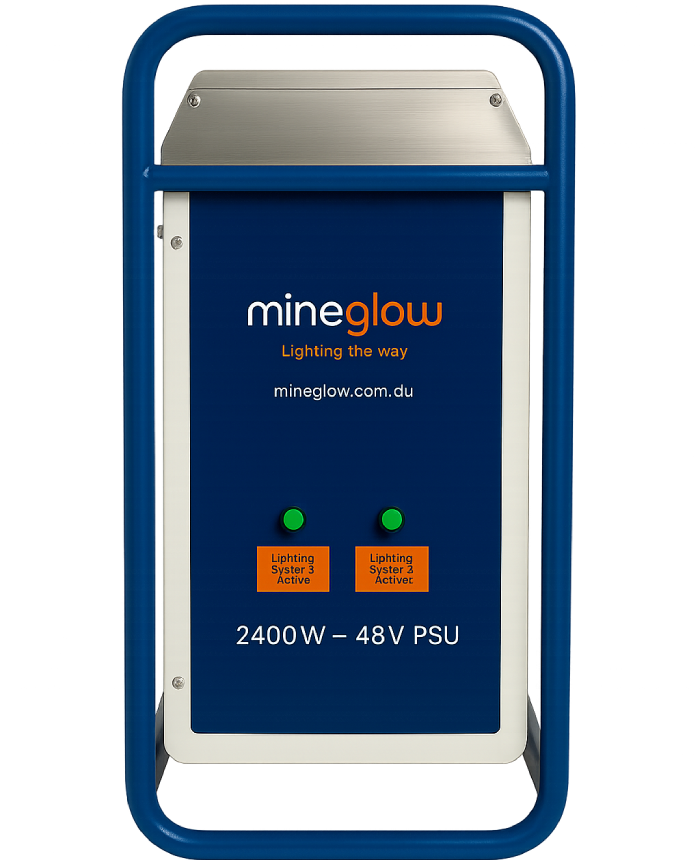

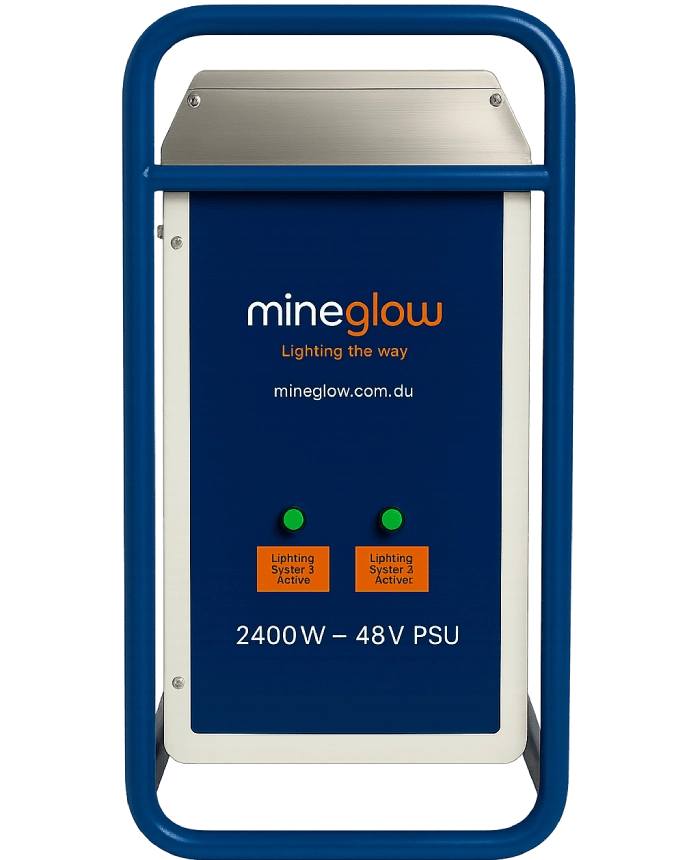

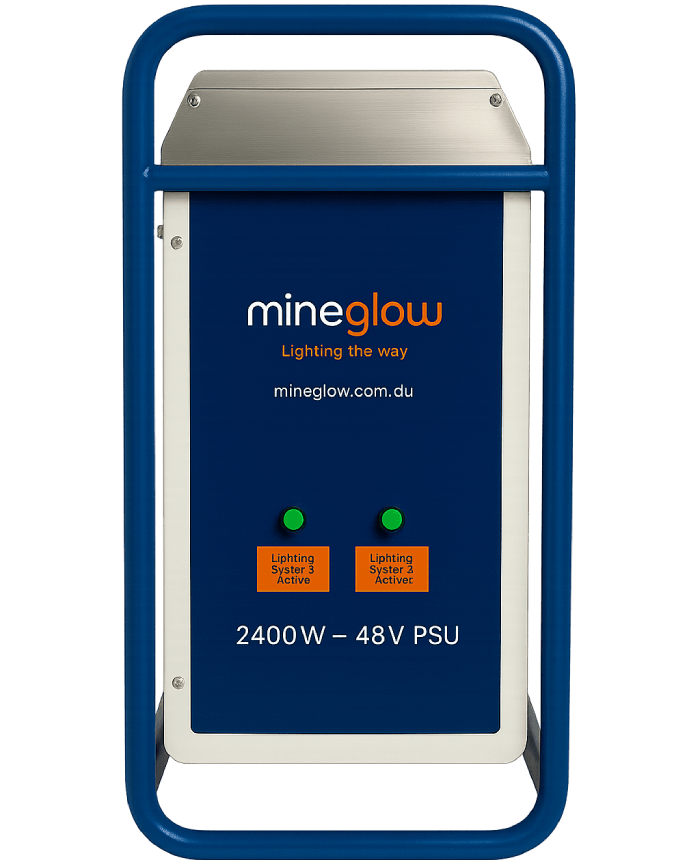

The MineGlow 2400W 48V DC Power Supply Unit is a rugged, high-performance power solution designed to meet the demanding requirements of long-distance LED tunnel lighting systems.
Encased in a durable IP66-rated 316 stainless steel enclosure, the unit is built to withstand harsh environments and serves as the backbone of MineGlow’s advanced LED tunnel lighting systems.
Delivering 2400 watts of power, each unit can support 400-meters of LED Strip Light. This reduces the number of power supplies required over 400 meters by 80%, significantly lowering capital expenditure and cutting installation time by up to 60%. As a result, downtime in mining and tunnel operations is minimised.
This power supply unit together with our Tunnel LED Strip Lighting is ideal for:
- Major Rail, Road & Infrastructure projects
- Temporary Tunnel construction lighting
- Permanent Tunnel Lighting
- Mining tunnels
- Conveyor tunnels
- Drifts and declines
- Underground stores
- Train Load Out Areas
- Workshops & maintenance Bays
- Any industrial application
Designed and manufactured in Australia by Becker Mining Systems, this unit adheres to Australian AS/NZS standards, ensuring quality and reliability in every installation.
SPECIFICATIONS | SUMMARY
| Table Header | Table Header |
|---|---|
| Part Number | 2400W-48v-ENCL-DO |
| Power | 2400W Dual Output – 2 x 1200W |

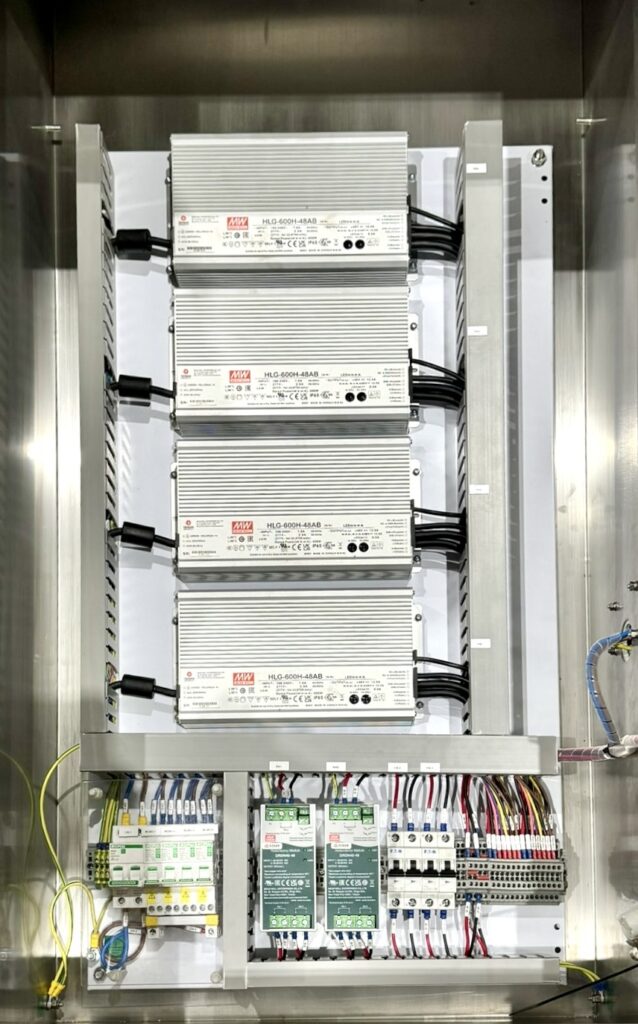

| Power Supply | 4 x Meanwell HLG-600-48AB |
| Voltage INPUT | 90 – 305 VAC Single Phase |
| Voltage OUTPUT | 48 VDC |
| Current - INPUT | 21A@115 VAC 13.2A@230VAC |
| Current - OUTPUT | 2 x 25A Dual Output - 1200W each |

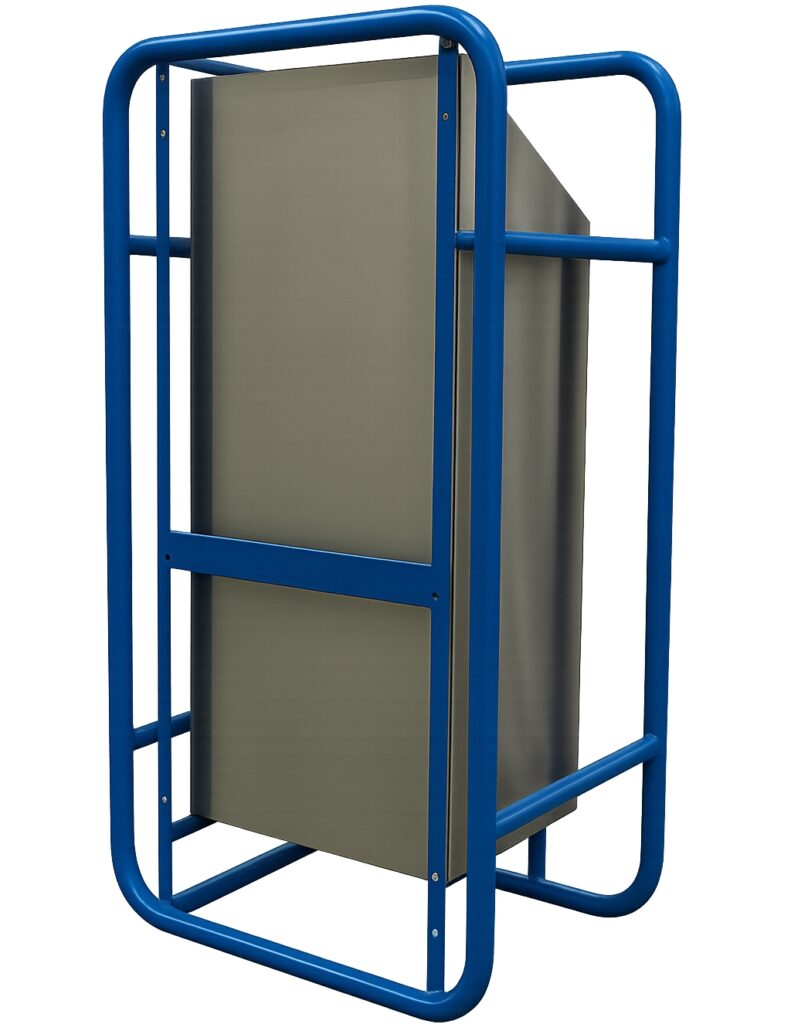

| Enclosure Type | 316 Stainless Steel – Angled Roof |
| Enclosure Size | 1000mm x 600mm |
| Operating Temperature | -40°C to 90°C |
| IP Rating | IP66 |
| External Isolator | Yes |
| Circuit Breaker | Yes |
| Warranty | 12 Months Internal components only |
| Maximum run length for: x-Glo Tunnel Series | Single Feed – 1200W: T12 – 100m T9 – 120m T5 – 180m T2 – 200m Dual Feed – 2 x 1200W from each end T12 - 200m T9 - 240m T5 - 360m T2 - 400m |
