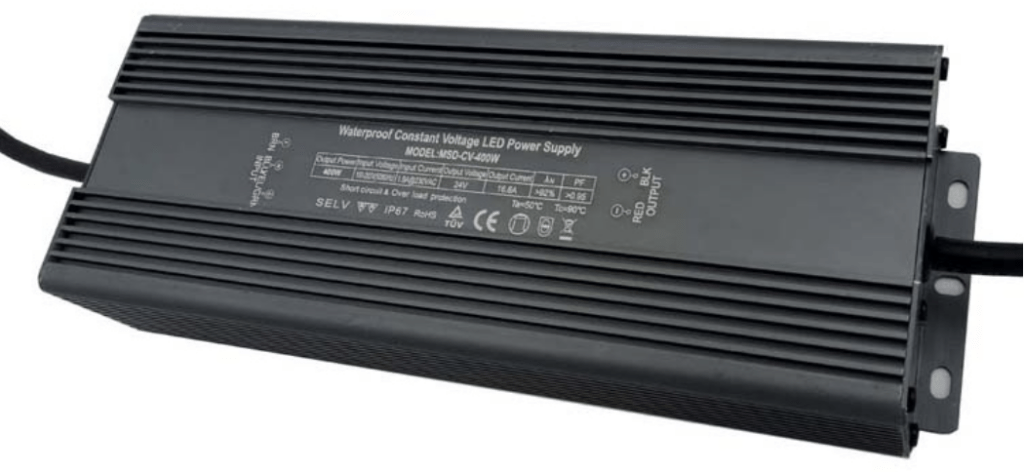

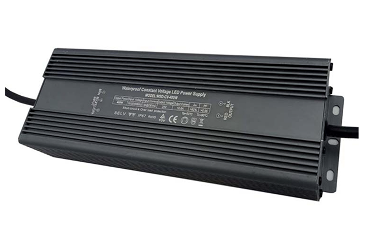

MG 400W 24/36V Power Supply
400W DC Power Supplies with Dual Output
The MineGlow 400W 24/36V DC Power Supplies (Driver) are a reliable, rugged power supply, engineered specifically for energising the x-Glo LONG RANGE LED Strip Lights in demanding industrial environments.
Encased in a water-resistant IP67-rated aluminium enclosure, the MG 400W PSU features dual output capability, making it ideal for powering multiple lighting from a single unit. Whether you’re lighting up a mining tunnel, rail corridor, or underground workshop, this power supply delivers consistent, efficient power with minimal maintenance.
It is available in 24V DC or 36V DC. A 48V model is also available on request.
Recommended for use with our x-Glo Long LED Strip lights for:
- Mining tunnels
- Underground stores
- Cuddies and crib rooms
- Dump points
- Train loadout areas
- Workshops & maintenance bays
- Any industrial application requiring 36v power
Fully certified for use in Australasia. All certifications available on request.
Go to the Downloads section below for full technical specifications and certification details.
SPECIFICATIONS | SUMMARY
| Table Header | Table Header |
|---|---|
| Part Number | 400W-24v-DO 400W-36v-DO 400W-48v-DO (Special Request) |
| Power | 400W Single or Dual Output |
| Power Supply | Sealed enclosure with a single input and dual output cables – 1m each |
| Voltage INPUT | 180 - 265VAC Single Phase |
| Voltage OUTPUT | 24 or 36 or 48 VDC |
| Current – Max INPUT | 2.03A @ 1220VAC |
| Current – Max OUTPUT | 24V – 16.6A 36v – 11.1A 48V – 8.3A |
| Enclosure Type | Ruggedised Aluminium casing |
| Enclosure Size | 285L x 95W x 50H |
| Operating Temperature | -25°C to 50°C |
| IP Rating | IP67 |
| External Isolator | N/A |
| Circuit Breaker | N/A |
| Warranty | 12 Months |
| CONFIGURATION GUIDELINES | Below are the maximum run lengths recommended for x-Glo products, when installing a 400W power supply connected on one end.
This distance doubles when energised with two 400W power supplies attached to each end. |
| x-Glo Standard Range – 24V & 36v | |
| x-Glo Long Range – 24V - L-60-24v-DC | 30m |
| x-Glo Long Range – 36V - L-12-36v-DC - L-24-36v-DC - L-30-36v-DC - L-36-36v-DC - L-60-36v-DC | 75m 63m 50m 50m 40m |
