Power Supply

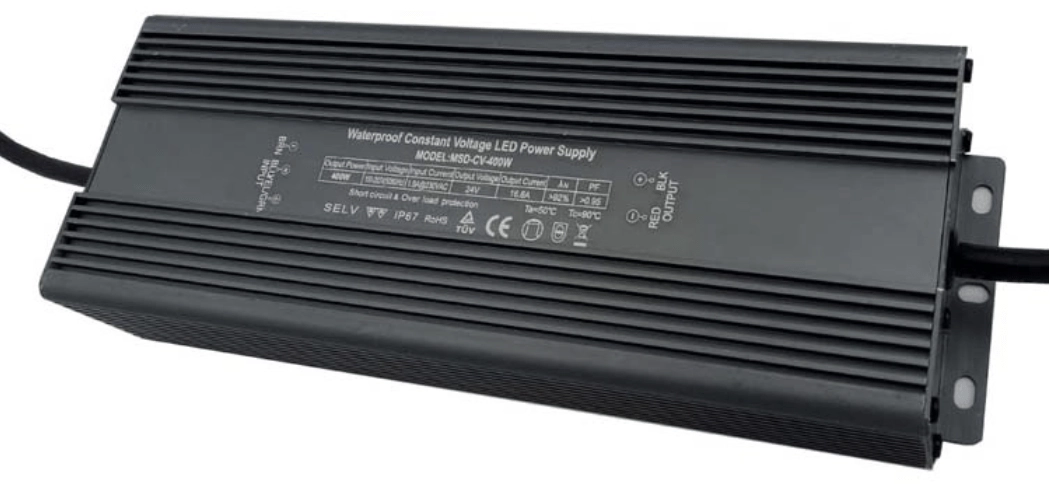

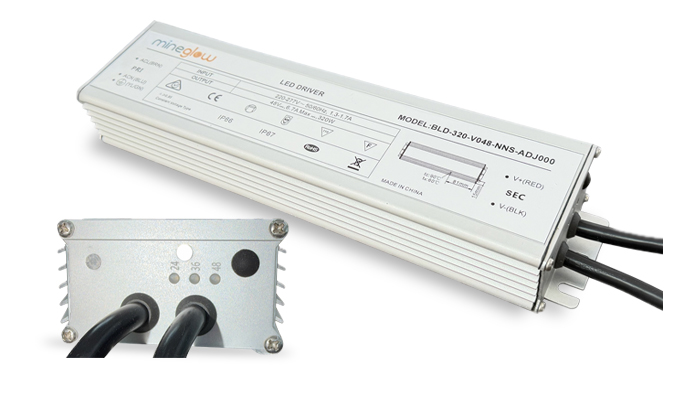

ALUMINIUM DRIVERS
Mineglow Branded IP67 aluminium drivers as well as Meanwell Drivers are available in various watts.
POTTED DRIVERS
Specifically developed for gaseous mines with no aluminium exposed. They are fully encapsulated within a PVC enclosure, and are available in both single & dual outputs. They are also great for Marine applications.
DESCRIPTION
| Table Header | Table Header |
|---|---|
| Part Number | x-Glo-PC-300 |
| DC Voltage | 36V |
| Rated Power | 300W |
| Voltage Range | 85 – 265 VAC |
| IP Rating | 68 |
| DC Current | 8.33A |
| AC Current | 2.02A-240VAC |
| Inrush Current | Cold Start Current 40A-240VAC |
| Leakage Current | < 2.5ma-240vac |
| Lifespan | >50,000 Hours |
| Protection | Short Circuit Over Voltage Over temperature Over Current |
| Frequency | 47-63HZ |
| Certificate of Approval | AS-NZS 4417 AS-NZS IEC 61347.2.13:2013 AS-NZS 61347.1:2002 |
DOWNLOADS
300W Aluminium Specs
300 Potted Specs
